LIVEMIX DA-816
LIVEMIX DA-816
8 Channel Analog Output for Wireless In-Ear Monitors
$1099.99

The DA-816 output rack unit is for connecting to wireless in-ear transmitters, powered monitors or powered house speakers. The DA-816 connects to the MIX-16 or MIX-32 via shielded CAT5e network cable. Each DA-816 provides eight stereo TRS outputs. The DA-816 provides stereo balanced outputs for 8 personal mixes. Flexible SoftRoute™ mix assignments and test tone capabilities, make for quick setup. Front panel LEDs indicate a personal mix is assigned to one or more of the outputs. When the Output ID feature is enabled and an output is selected, the front panel LED illuminates and a test tone is sent to the output.

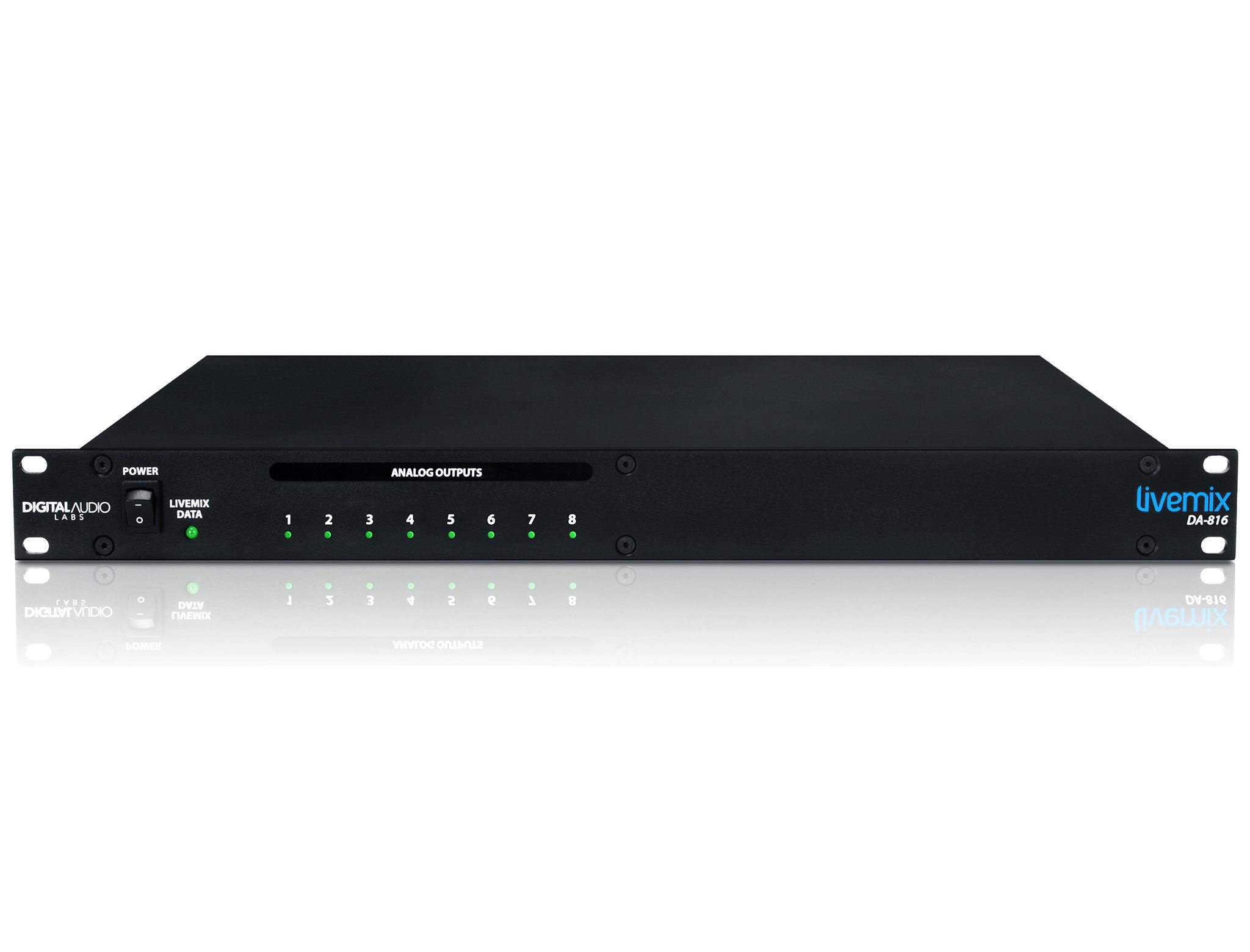

Livemix DA-816 Analog Output Unit For Personal Monitor System And Wireless In-ear Monitors Front Angle Image
Livemix DA-816 Analog Output Unit For Personal Monitor System And Wireless In-ear Monitors Front Angle Image

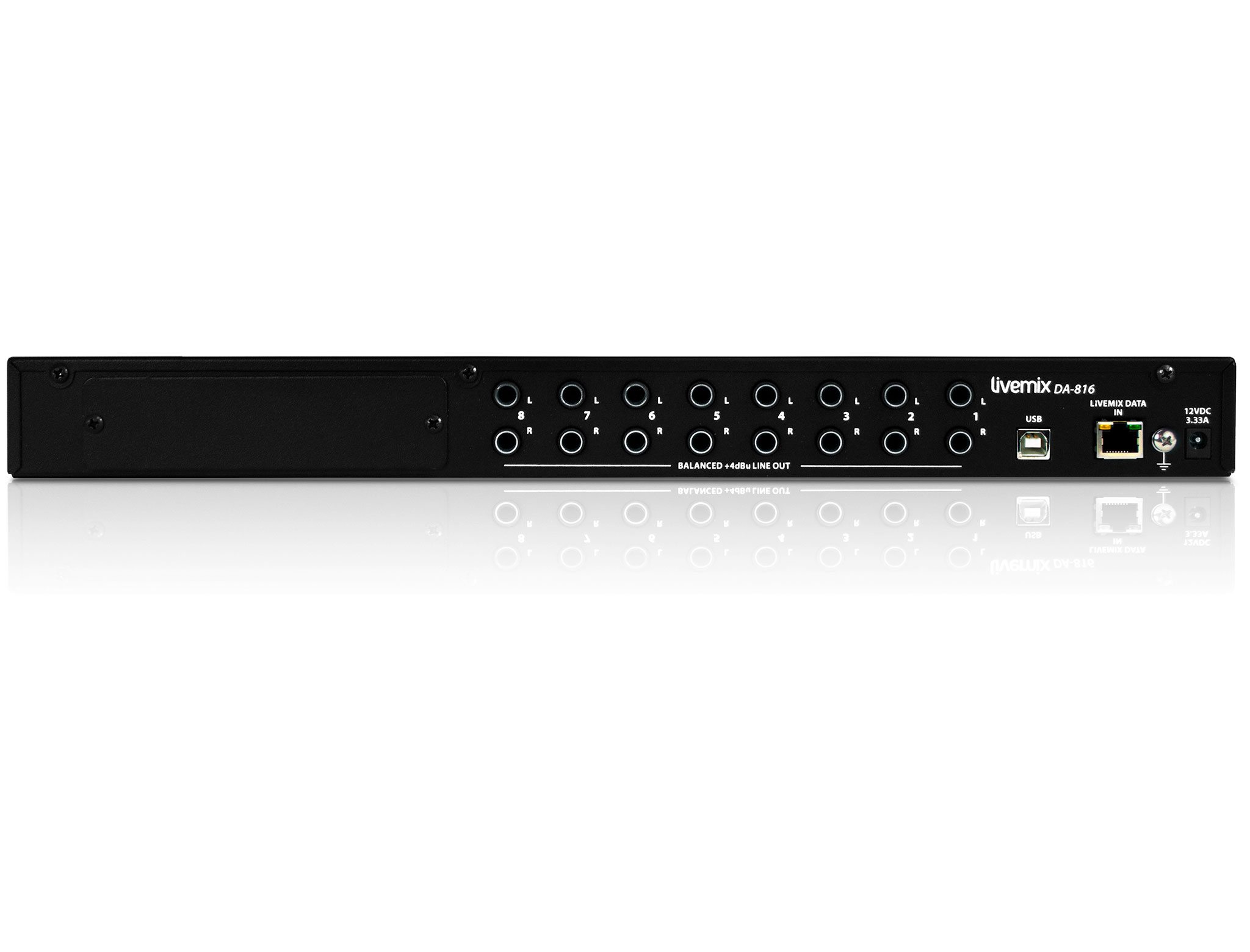

Livemix DA-816 Analog Output Unit For Personal Monitor System And Wireless In-ear Monitors Back Image

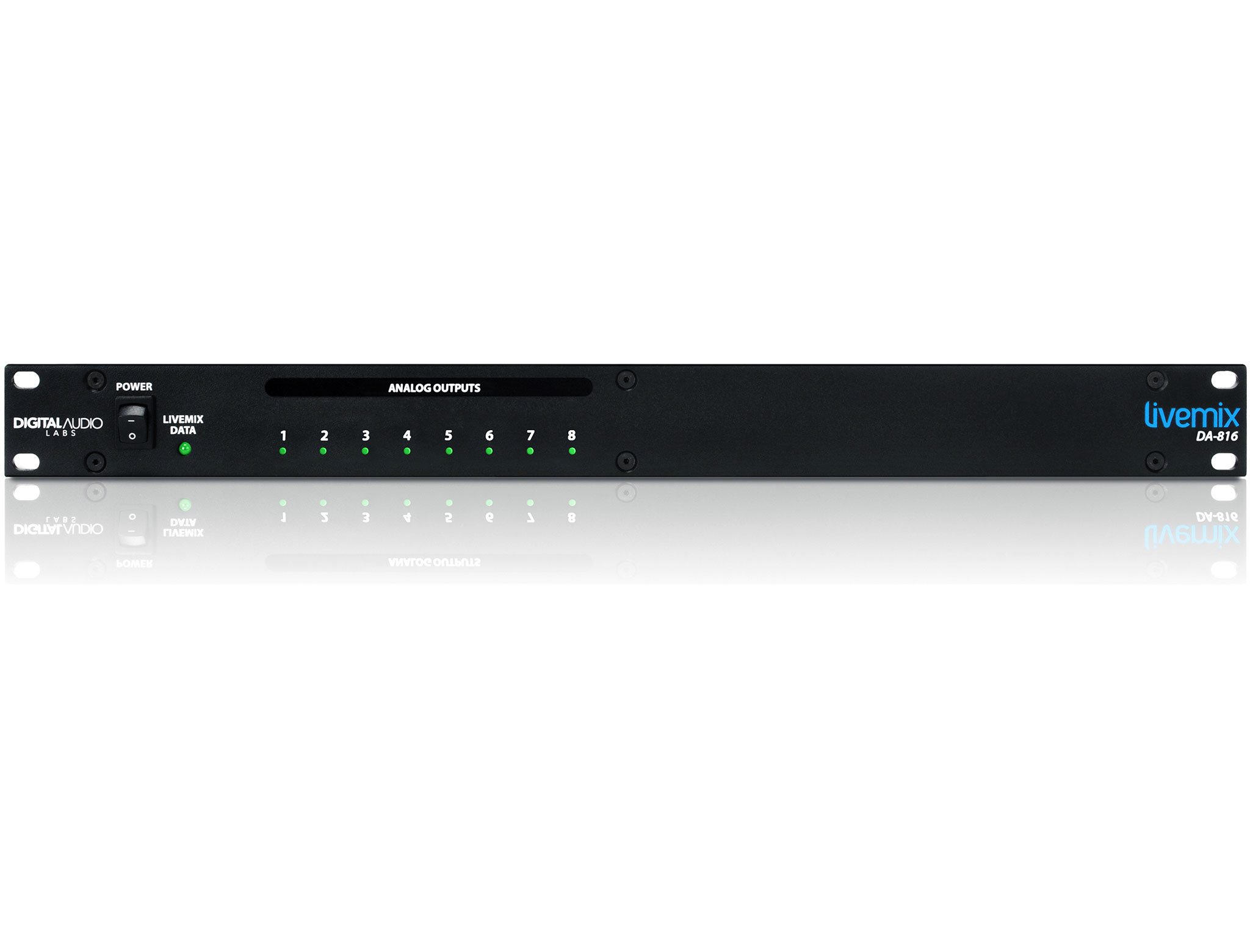

Livemix DA-816 Analog Output Unit For Personal Monitor System And Wireless In-ear Monitors Front Image
Livemix DA-816 Analog Output Unit For Personal Monitor System And Wireless In-ear Monitors Front Angle ImageLivemix DA-816 Analog Output Unit For Personal Monitor System And Wireless In-ear Monitors Back ImageLivemix DA-816 Analog Output Unit For Personal Monitor System And Wireless In-ear Monitors Front Image

FEATURES

  • Livemix Personal Monitor System 16 TRS Output

    16 balanced TRS outputs in stereo pairs

    The 16 balanced TRS outputs on the DA-816 provide stereo outputs for up to 8 Livemix mixes.

  • Livemix Personal Monitor System SoftRoute

    Easy setup from CS-DUO personal mixer with SoftRoute

    Seamlessly assign mixes to wireless in-ear monitors using SoftRoute™ on the Livemix CS-DUO or CS-SOLO personal mixers.

  • Livemix Personal Monitor System LED indicator

    Output ID with Indicator LED

    The Output ID makes it easy to identify devices connected to DA-816 outputs. When engaged, a front panel LED flashes and a test tone is sent through the selected output. No more digging behind the rack to find out what output is connected to what transmitter.

  • Livemix with expansion port icon

    Option Card Slot

    For future compatibility, an option card slot is included on the back of the DA-816. This insures that the Livemix system always stays current with new technologies.

DOWNLOADS

CURRENT FIRMWARE VERSION

CS-SOLO/CS-DUO

2.15

MIX-16/MIX-32

2.15

DA-816

1.10

LM-DANTE-EXP (only)

18.2.7.116

LM-DANTE-EXP2
(no update needed at this time)

18.3.13.127

The Livemix DA-816 uses open source code. The FreeRTOS source code is available for download here.

LIVEMIX DA-816
THD+N .0019%
S/N Ratio 104 dB
Full Scale Output +4 dBu/19 dB peak
Output Impedance 300Ω
Max cable length to MIX-16/MIX32 100m CAT5e cable (shielded required)

Shielded cable is required for connecting both the AD-24 and the DA-816 to the MIX-16 or MIX-32. Shielded cable is not required for connecting a CS-SOLO or CS-DUO to the MIX-16/32 or connecting the LM-DANTE card to the Dante network. However, shielded is recommended.

Categories: AD24, Cables, Livemix, MIX16, MIX32

The maximum supported CAT5e (shielded required) cable distance of 100 meters.

Categories: Cables, CSDUO, CSSOLO, Livemix, MIX16, MIX32

Each MIX-16/MIX-32 Control Surface port supports a maximum combined CAT5e (shielded recommended) cable distance of 100 meters.

Categories: Cables, DA816, Livemix, MIX16, MIX32

The maximum supported CAT5e (shielded required) cable distance of 100 meters.
