Livemix Pro is a scalable personal monitoring system with up to 64 channels of audio. It is designed to help teams make mixes easily, even with higher channel counts. Less than 64 channels? It can be configured to look like a smaller system. And with the revolutionary Group Mix View, making a personal mix with is simple, even with higher channel counts.
Every Livemix Pro system needs a central mixer/distributor, and at least one personal mixer. To design the system, just select the distributor unit based on how many total mixes you will need. Then determine how many personal mixers you need. The PRO-SOLO and PRO-SOLO MD personal mixers provides one personal mix per unit. The PRO-DUO dual mix personal mixer, provides two separate mixes, helping reduce additional costs and stage clutter. Lastly, select how many MT-1 mic stand mounts and accessories you may need.
64 CHANNELS BUT STILL EASY TO USE!
Livemix Pro builds on the success of Livemix with up to 64 channels (see only what you need), Dante channel name import, advanced effects including reverb, group mix mode with expanded view. Livemix Pro continues the legacy built by Livemix – simple to use with deep features pros need!
- Up to 64 channels
- Only see the channels you need!
- Massive 6″ capacitive touchscreen displays 16 channels or groups per page
- Ethercon connectors
- Power over CAT5e/CAT6
- Group and Channel Mix Modes
- MirrorMix® Remote Mixing
- Advanced channel and master effects
- Reverb available on each channel
- Built-in Intercom and Auxiliary Input
- Publish stereo mixes back to Dante
MULTIPLE OUTPUT OPTIONS
Each Livemix Pro personal mixer has an 1/4″ stereo output for headphones and a 1/8″ output for in-ear monitors. Each two channel stereo mix is ALSO published to the Dante Network for streaming mixes, livestreams, and more.
With the optional DA-8 Analog Output unit, any mix can be routed via SoftRoute™ to a stereo analog output for use with wireless transmitters or other analog gear.
EXTERNAL INTERCOM MICROPHONE
The Livemix Pro Solo MD features an onboard microphone preamp. This allows MDs and leaders to use an external dynamic or condensor microphone with the built-in Intercom channel.
Livemix Components

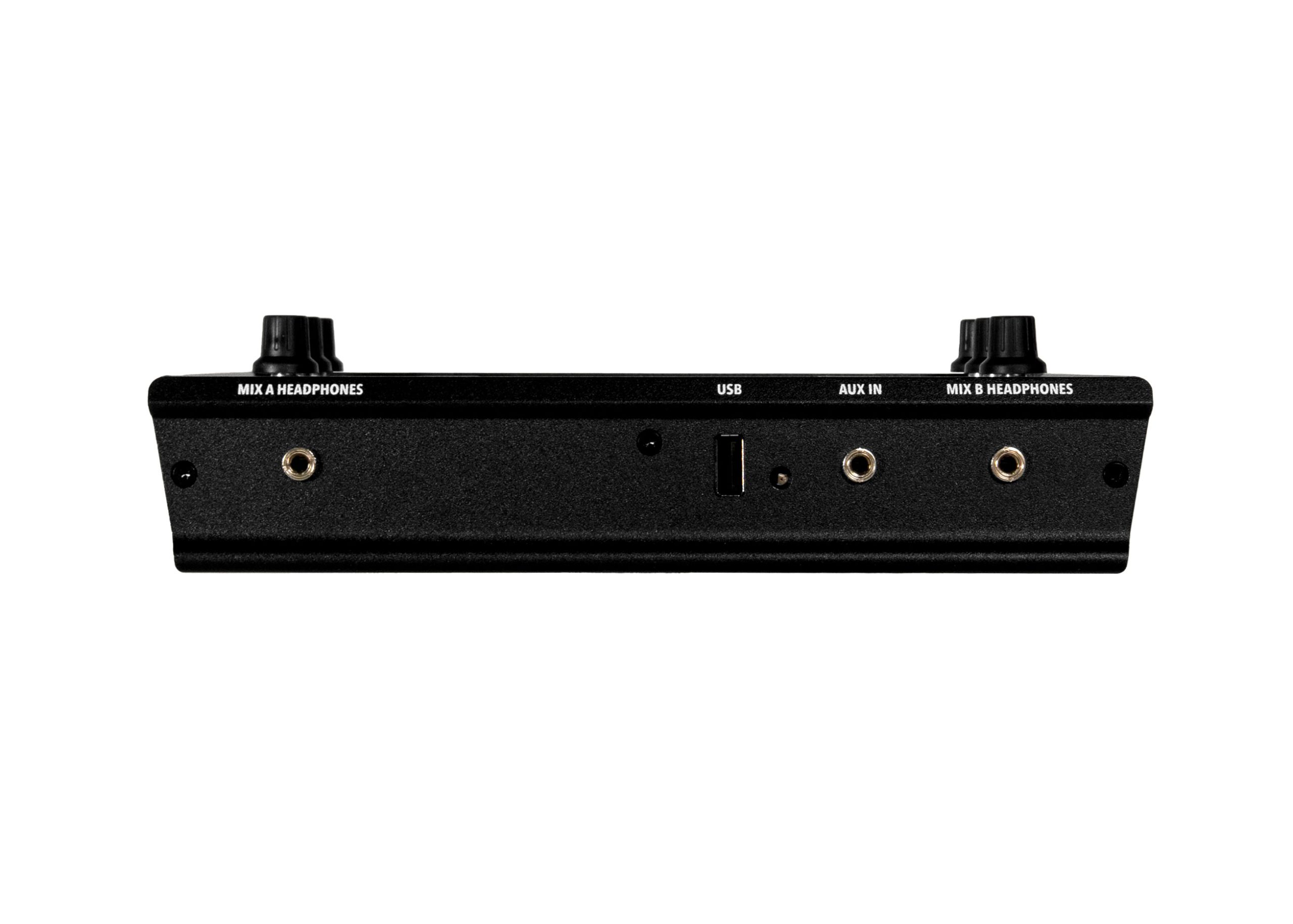

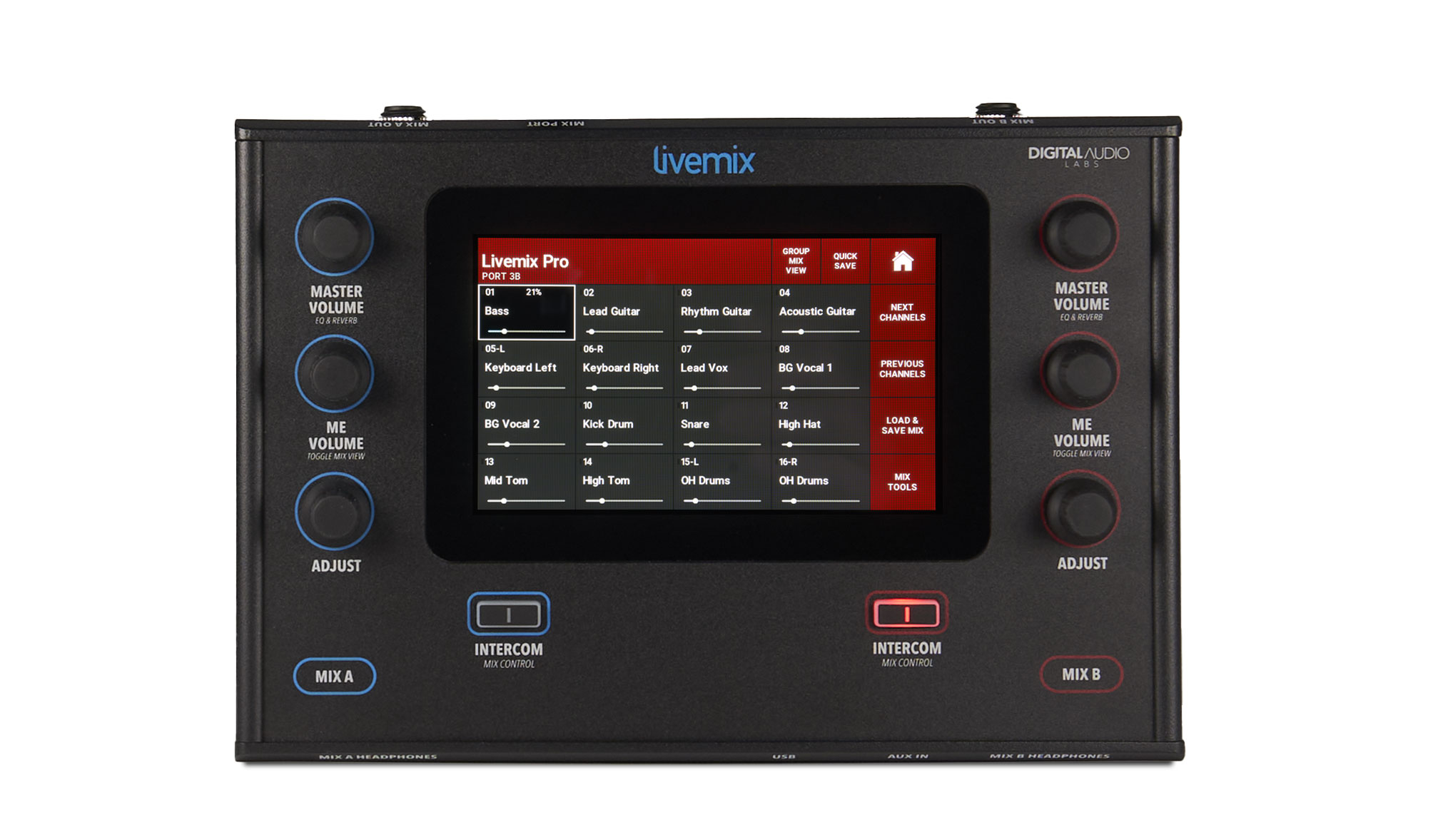

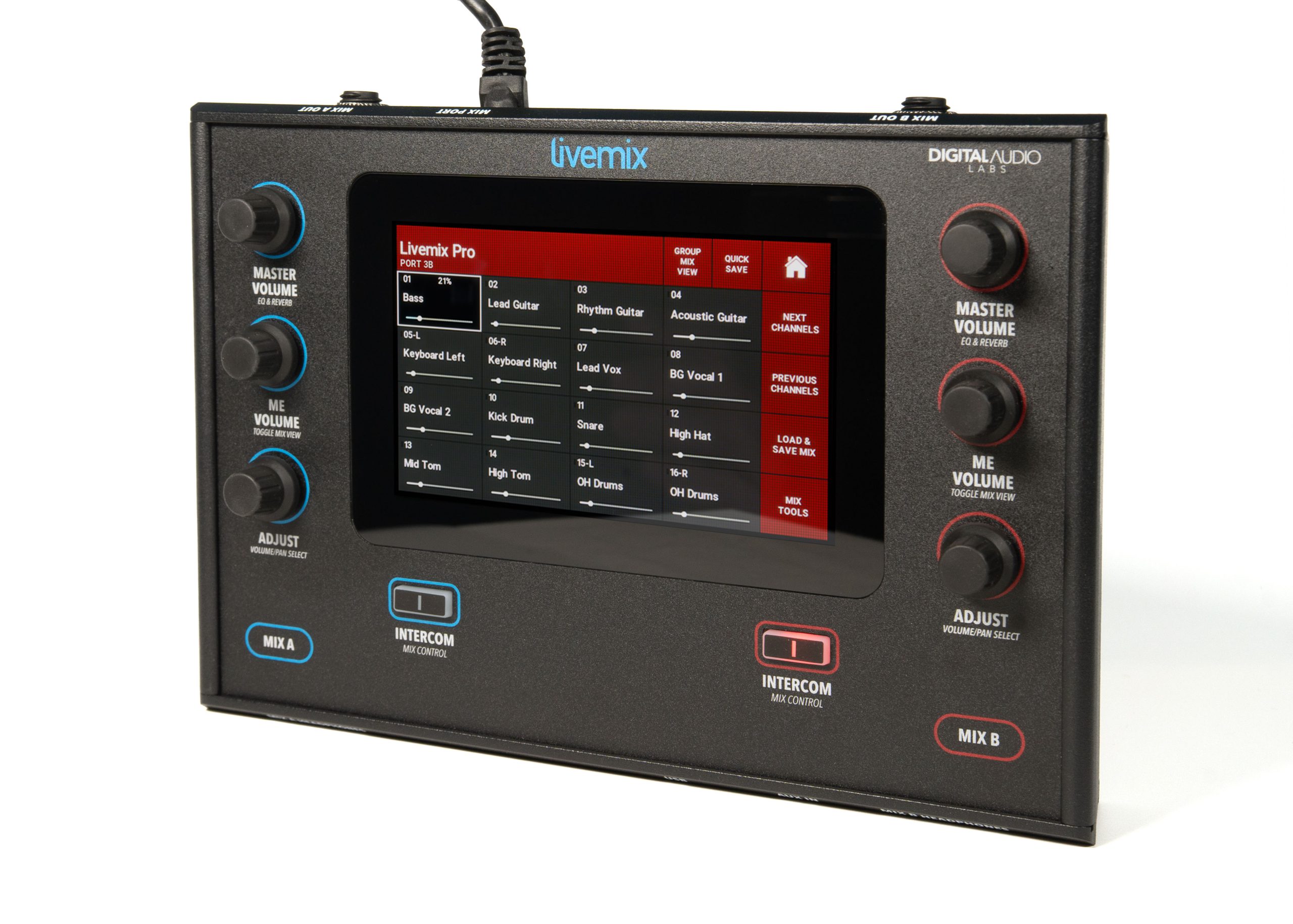

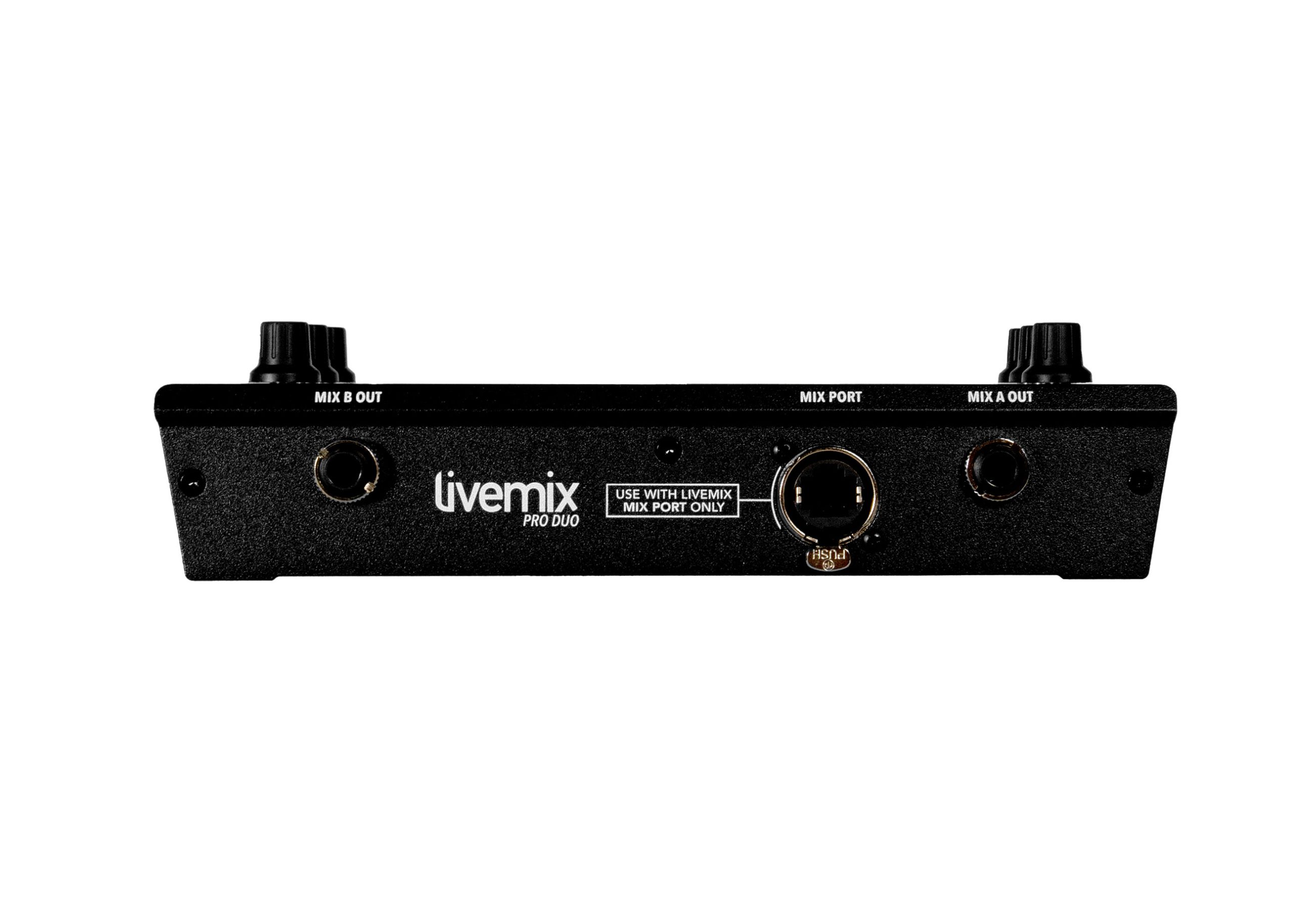

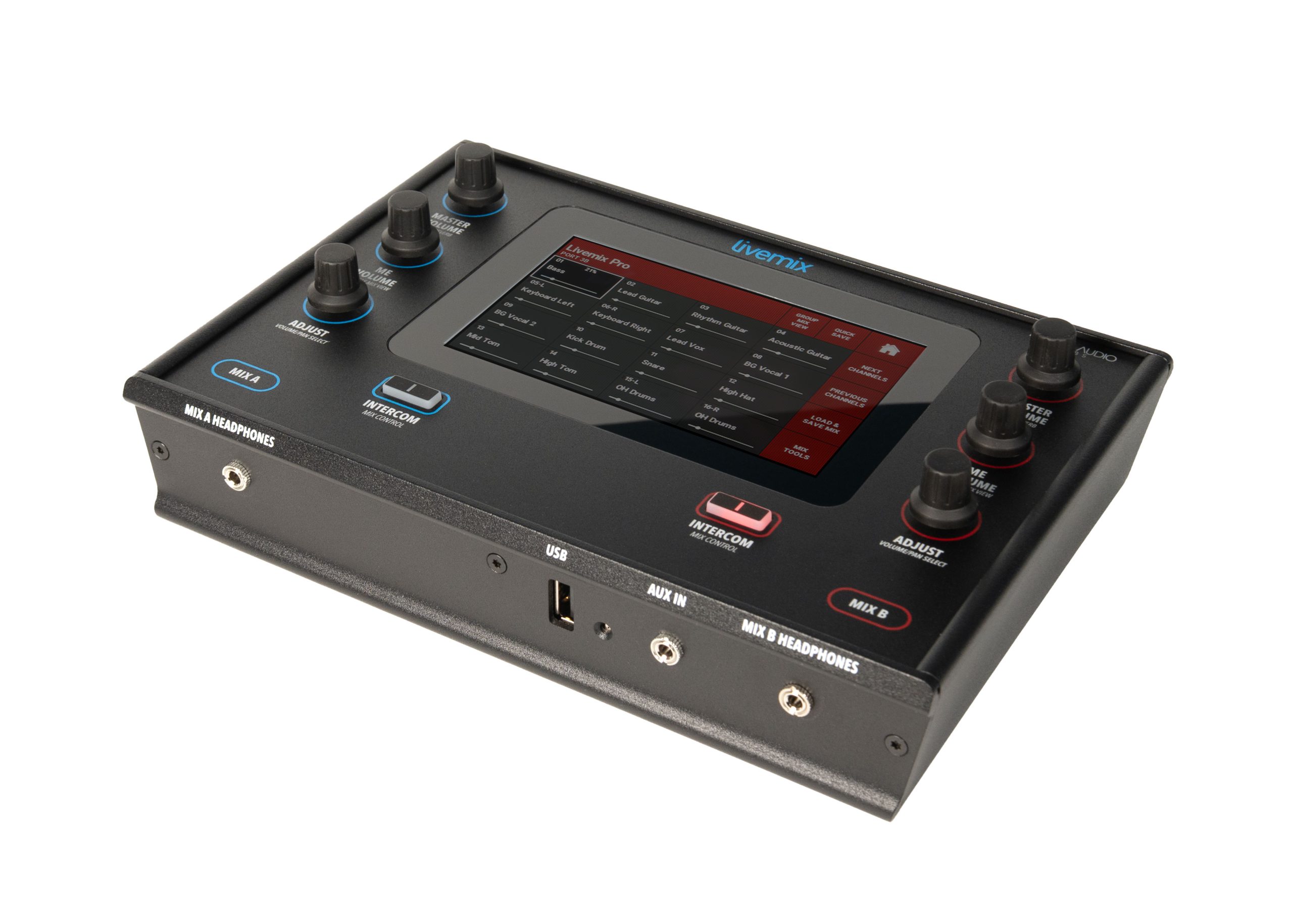

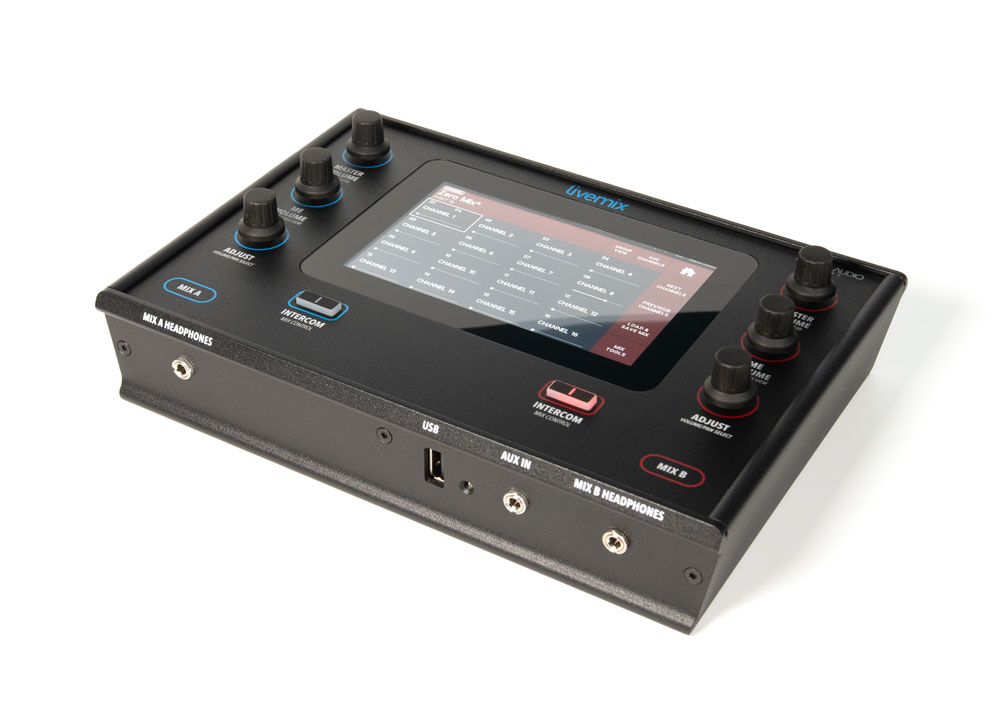

TWO MIX PERSONAL MIXER
$1049.99 MSRP
Two mixes in one box offer an incredible value and reduce stage clutter. Each of the two mixes has its own headphone amplifier and outputs. Each mix is fully featured and used the touchscreen to make the perfect personal monitor mix.
- Two discrete mixes in one unit
- Large capacitive touch touchscreen
- Dedicated master, adjust, and Me Group knobs
- 1/4″ and 1/8″ TRS outputs
- Ethercon connectors
- USB jack for saving mix and global settings

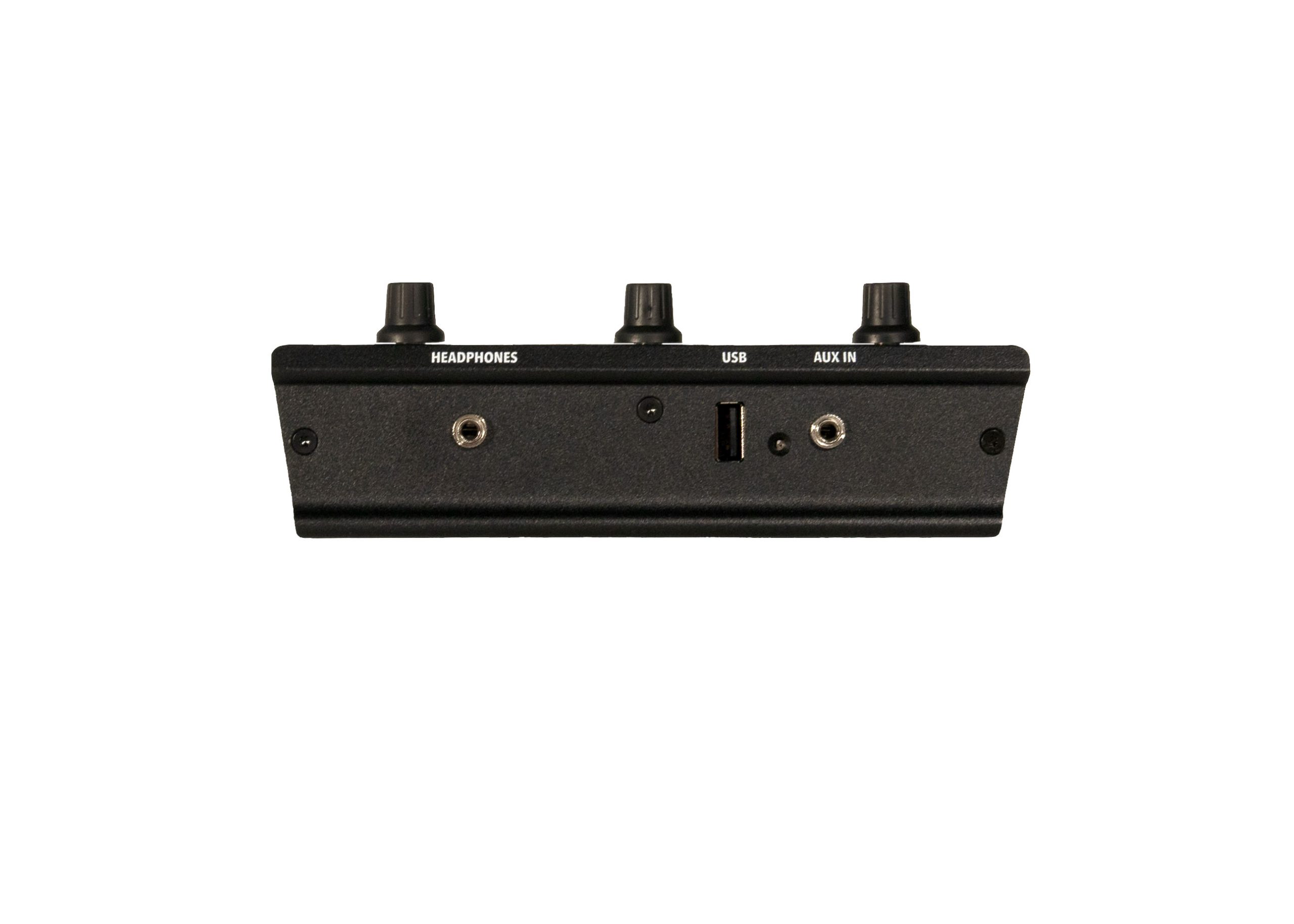

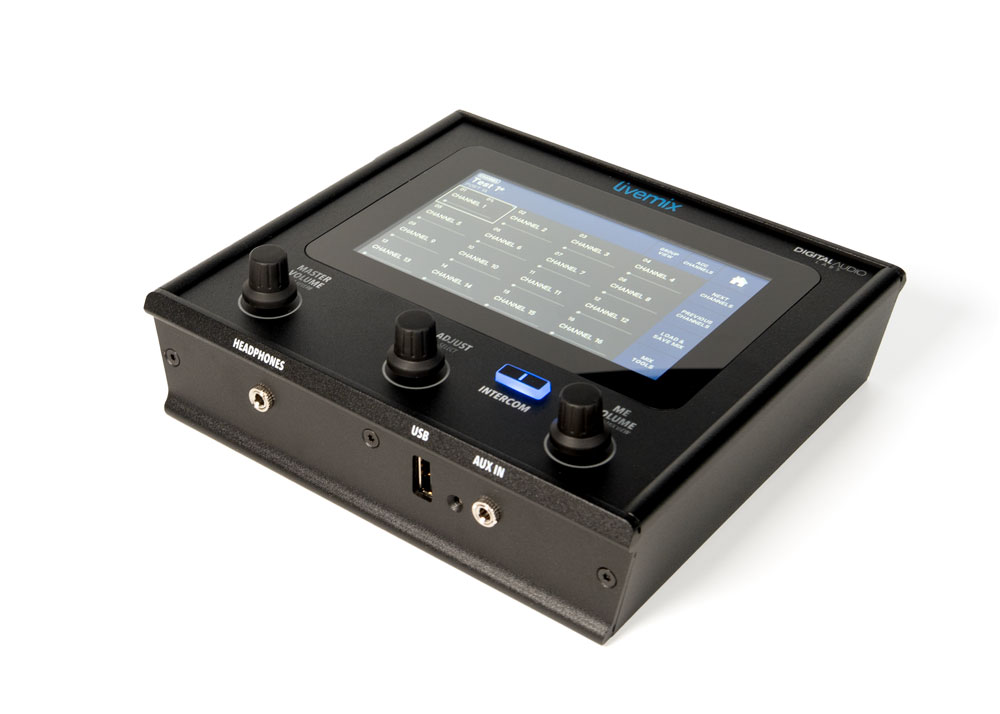

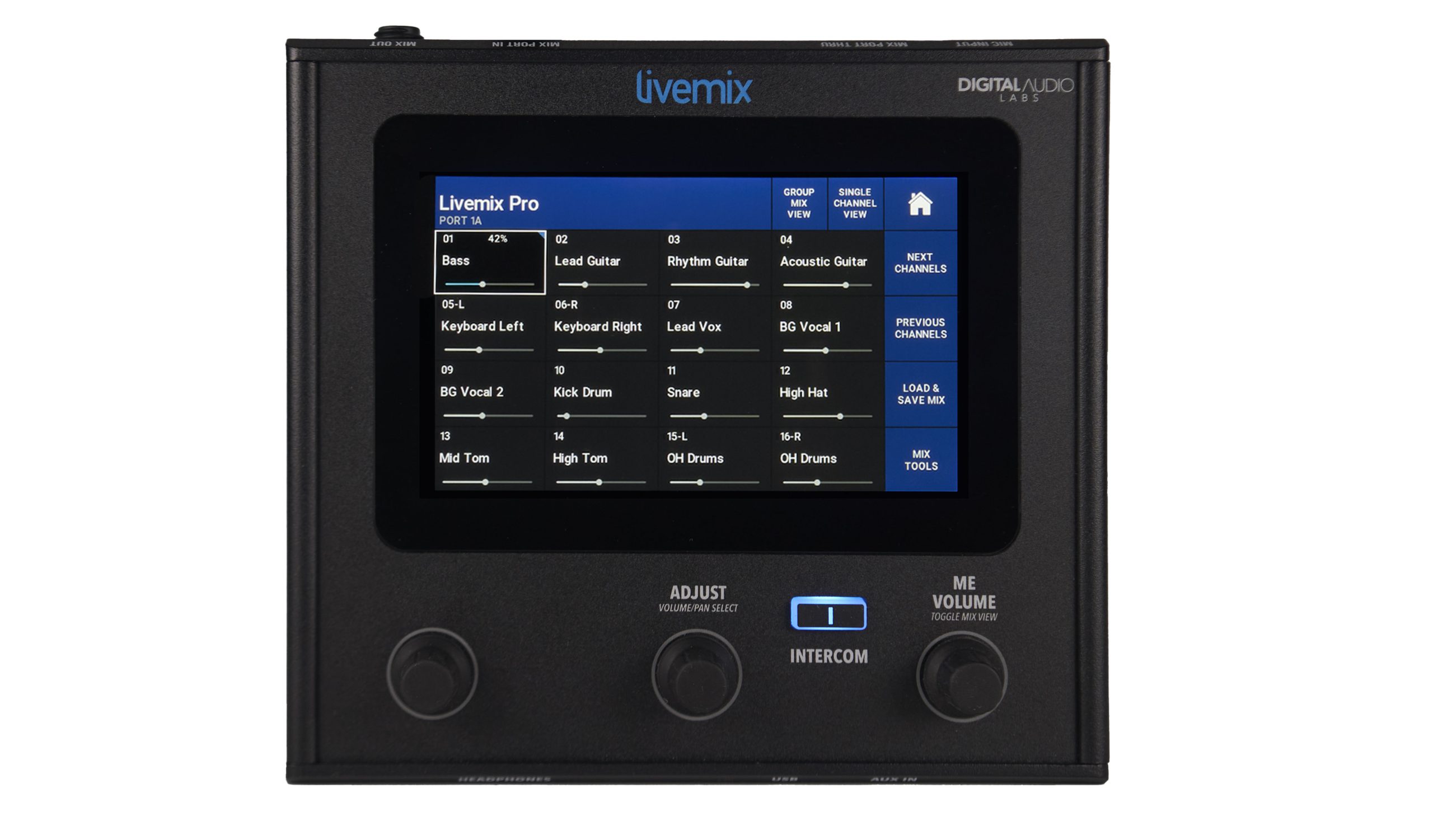

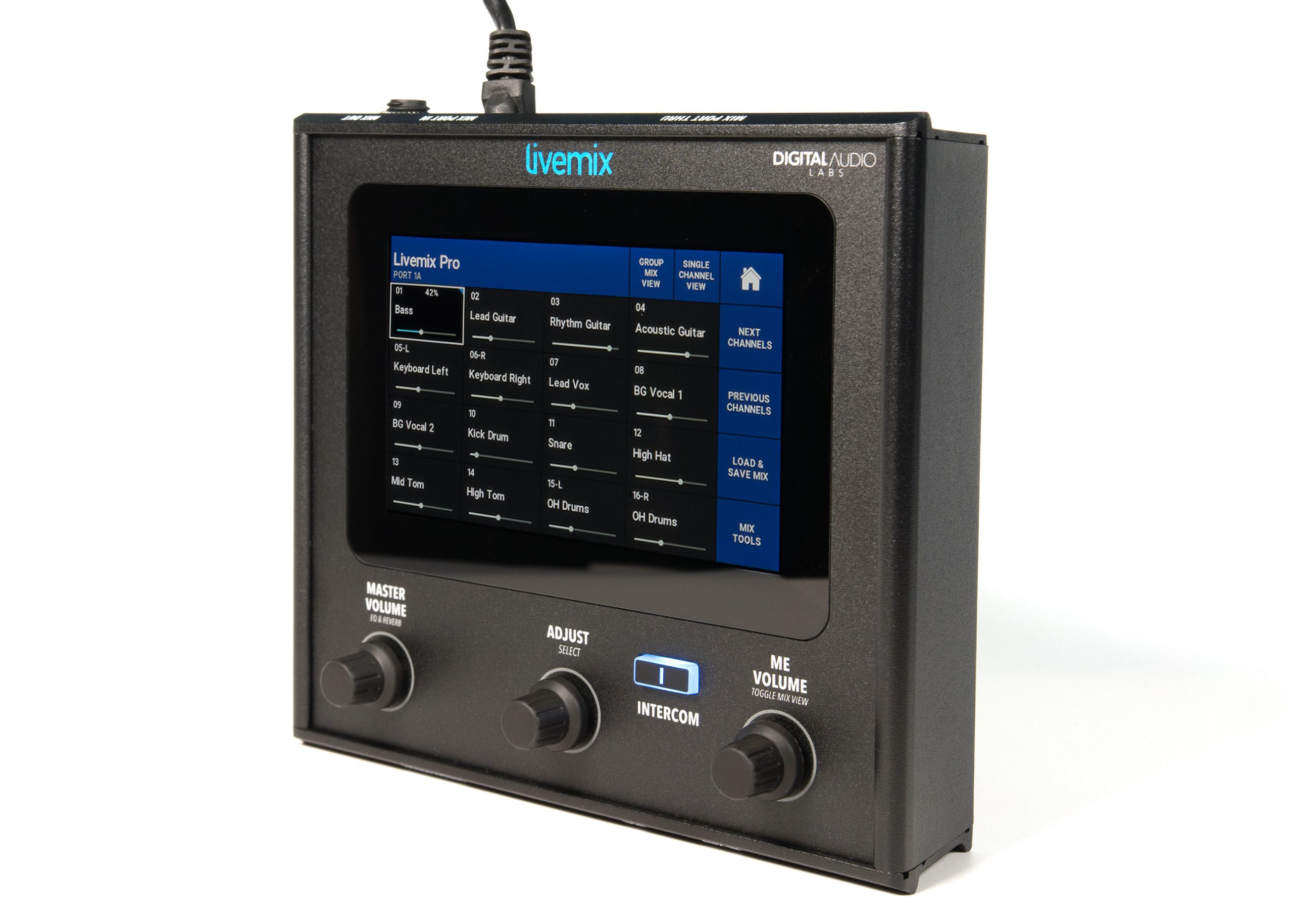

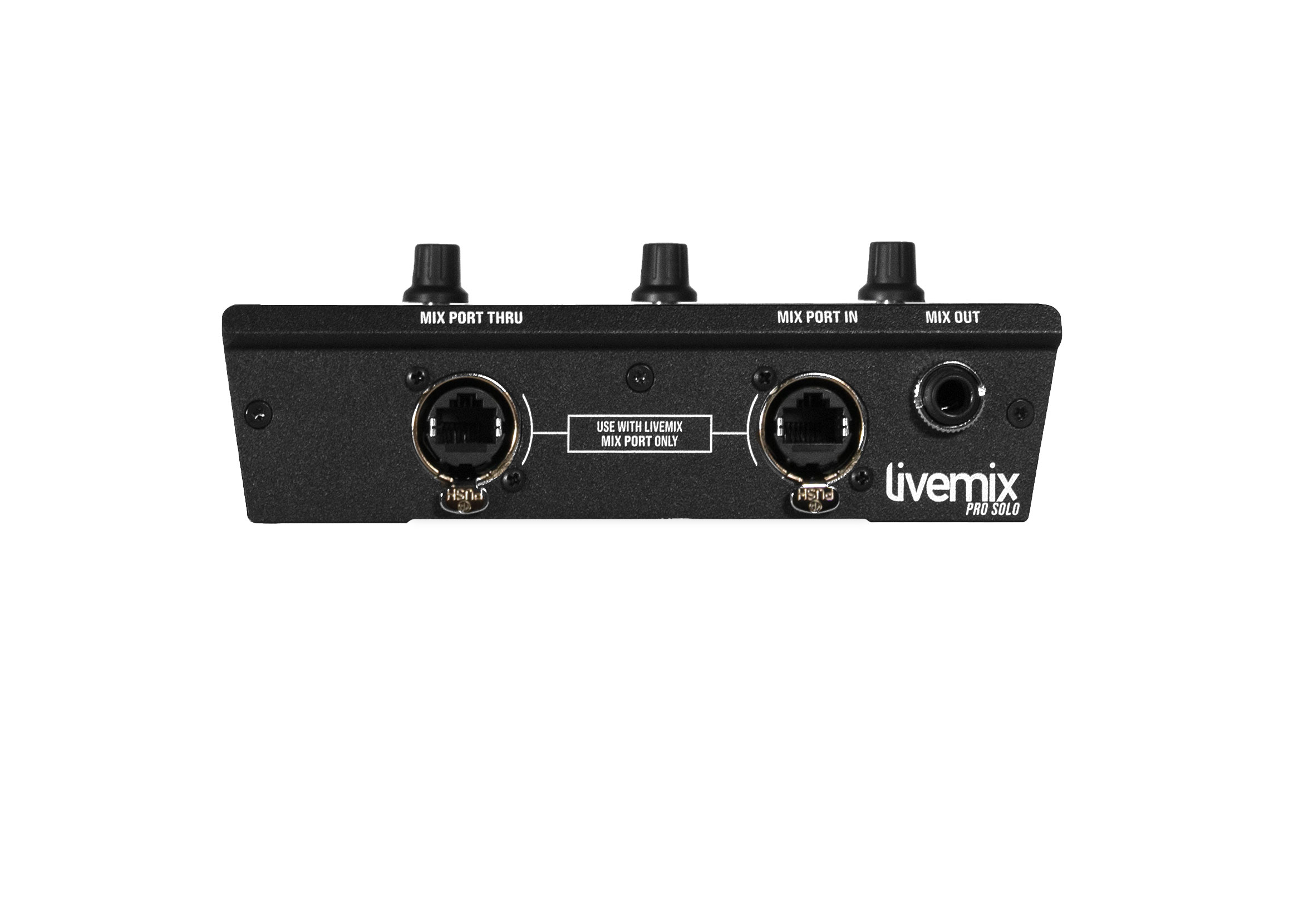

PERSONAL MIXER WITH PASS THROUGH POWER
$874.99 MSRP
Livemix Pro Solo is a single user personal mixer with pass through power and audio for an additional Pro Solo. Massive 6″ capacitive touch touchscreen makes mixing easy. Just press the channel to adjust and turn the knob.
- Power over CAT5e/CAT6 with pass through for one additional Pro Solo unit
- Large capacitive touch touchscreen
- Dedicated master, adjust, and Me Group knobs
- 1/4″ and 1/8″ TRS outputs
- Ethercon connectors
- USB jack for saving mix and global settings

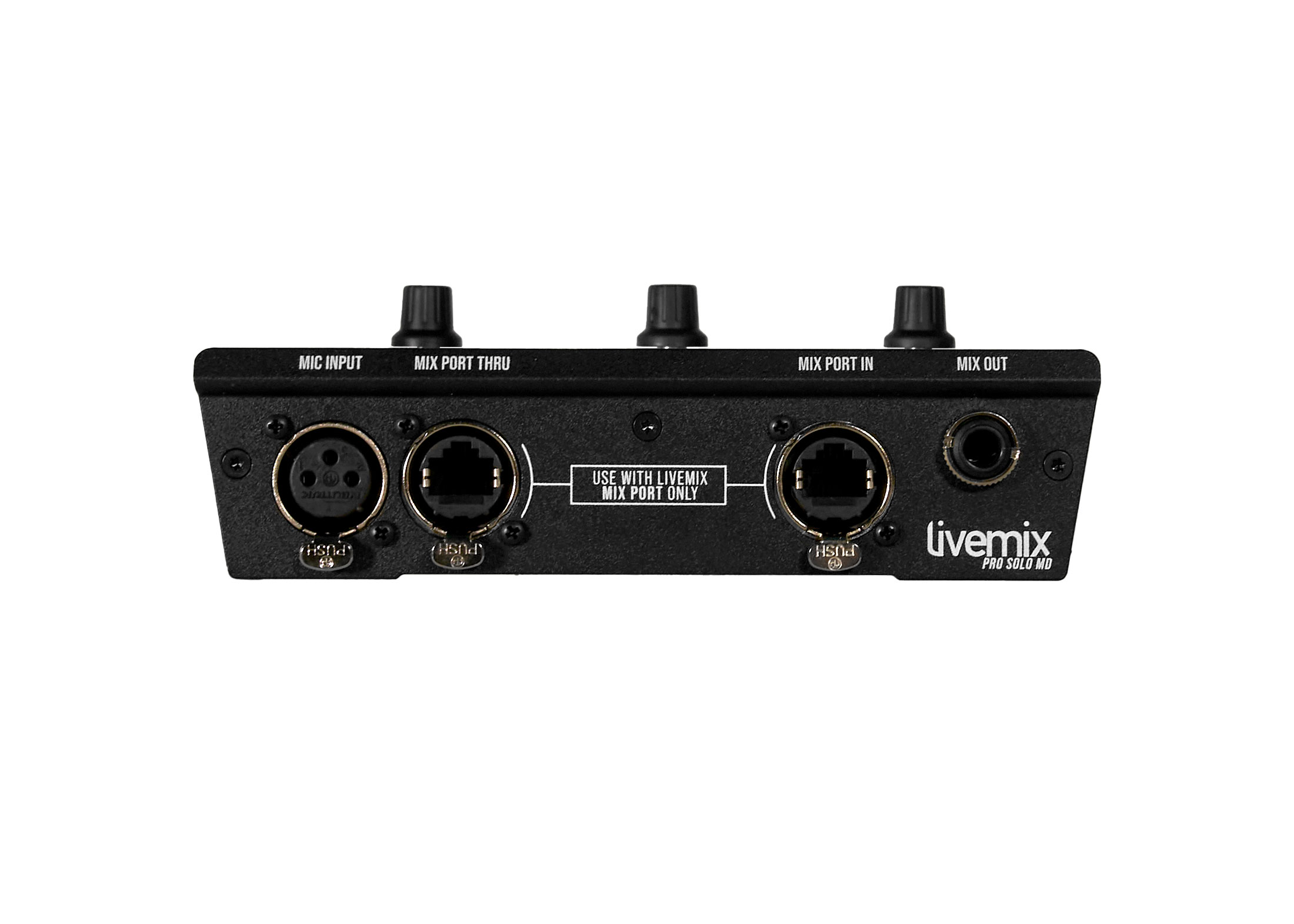

PERSONAL MIXER WITH BUILD IN INTERCOM MIC PREAMP
$999.99 MSRP
The Livemix Pro Solo MD has a preamp allowing the use of an external dynamic or condenser microphone with the built-in intercom system.
- Built-in microphone preamp for external intercom mic
- Power over CAT5e/CAT6 with pass through for one additional Pro Solo unit
- Large capacitive touch touchscreen
- Dedicated master, adjust, and Me Group knobs
- 1/4″ and 1/8″ TRS outputs
- Ethercon connectors
- USB jack for saving mix and global settings

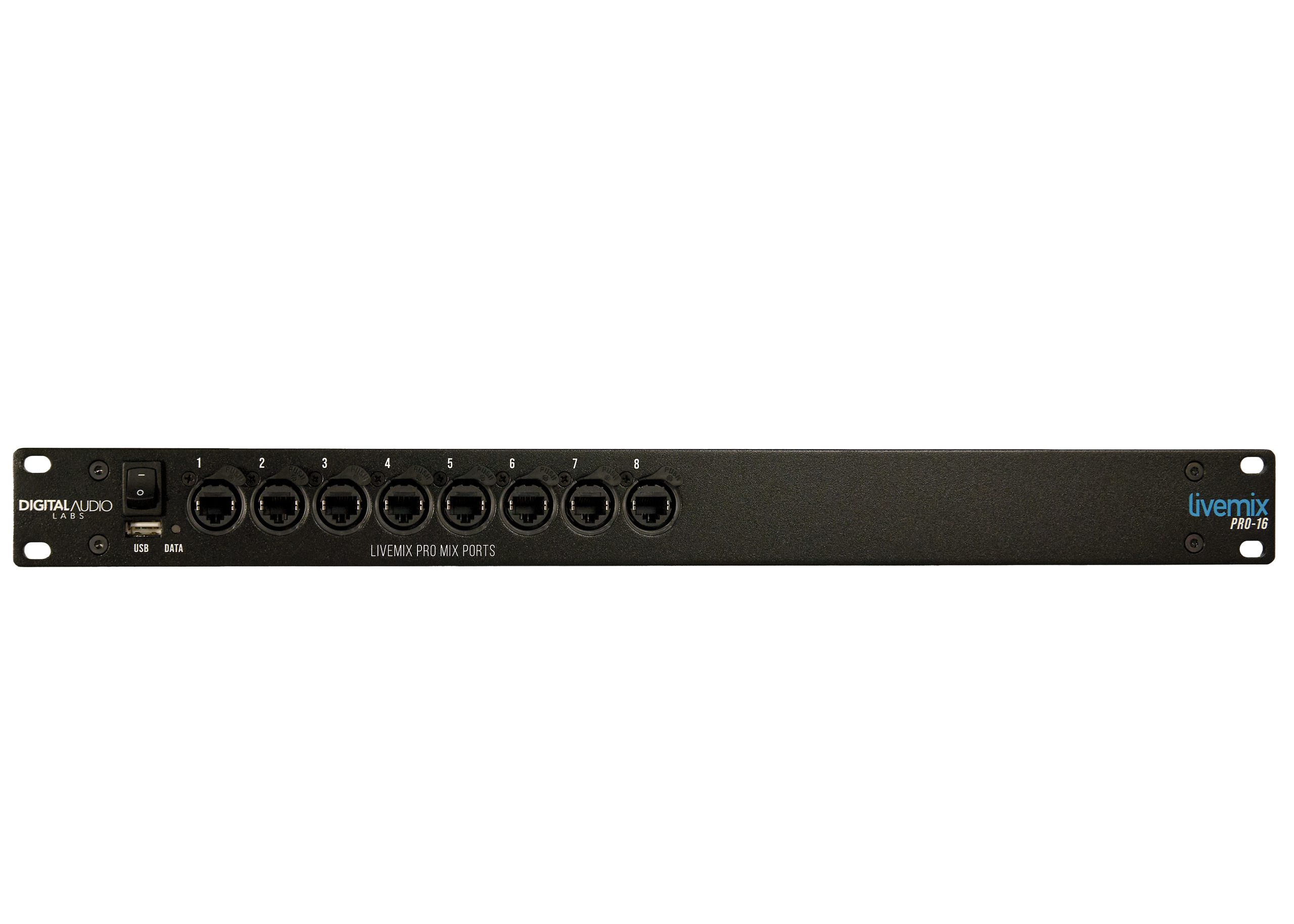

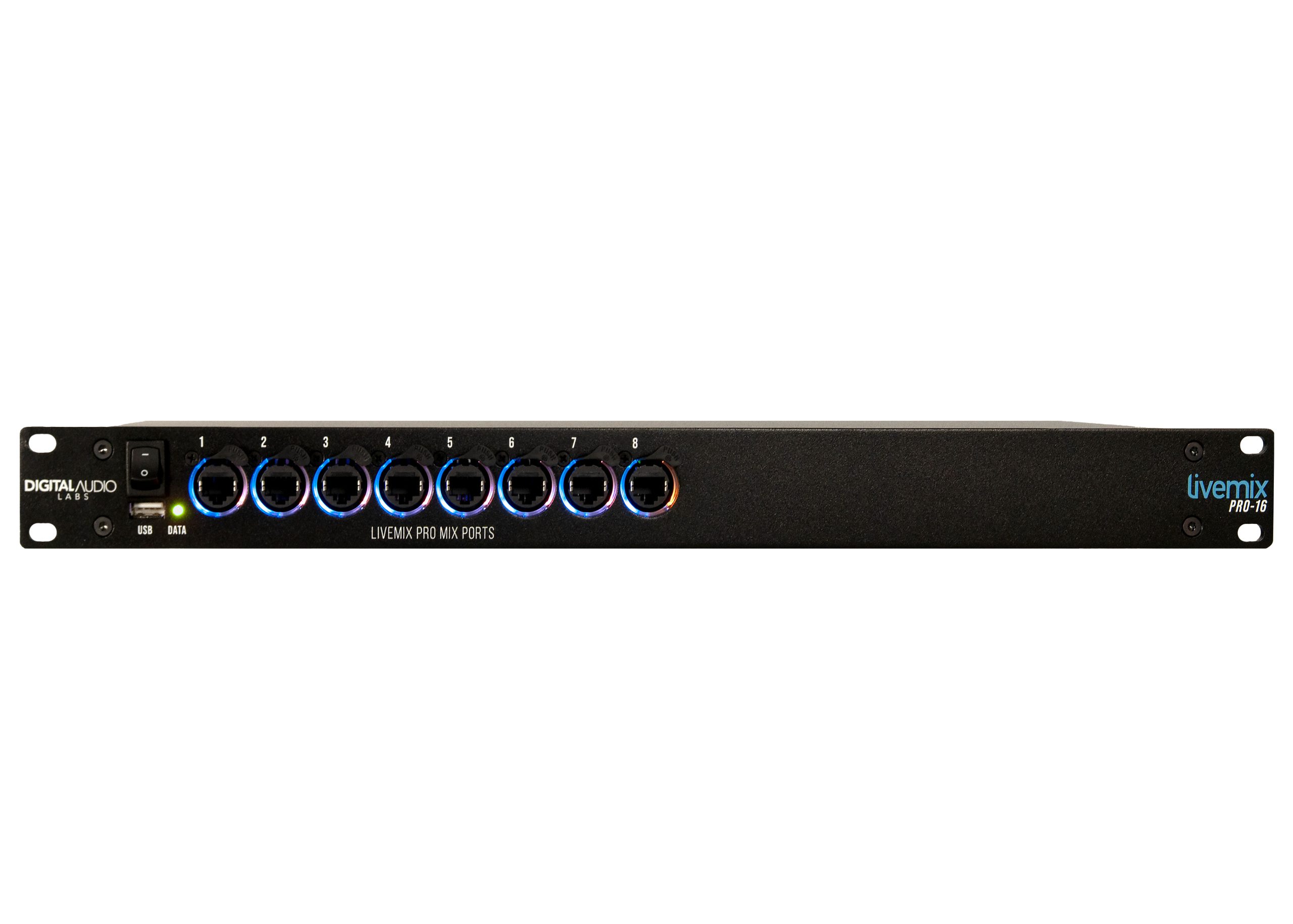

16 PERSONAL MIX DISTRUBUTOR
$3299.99 MSRP

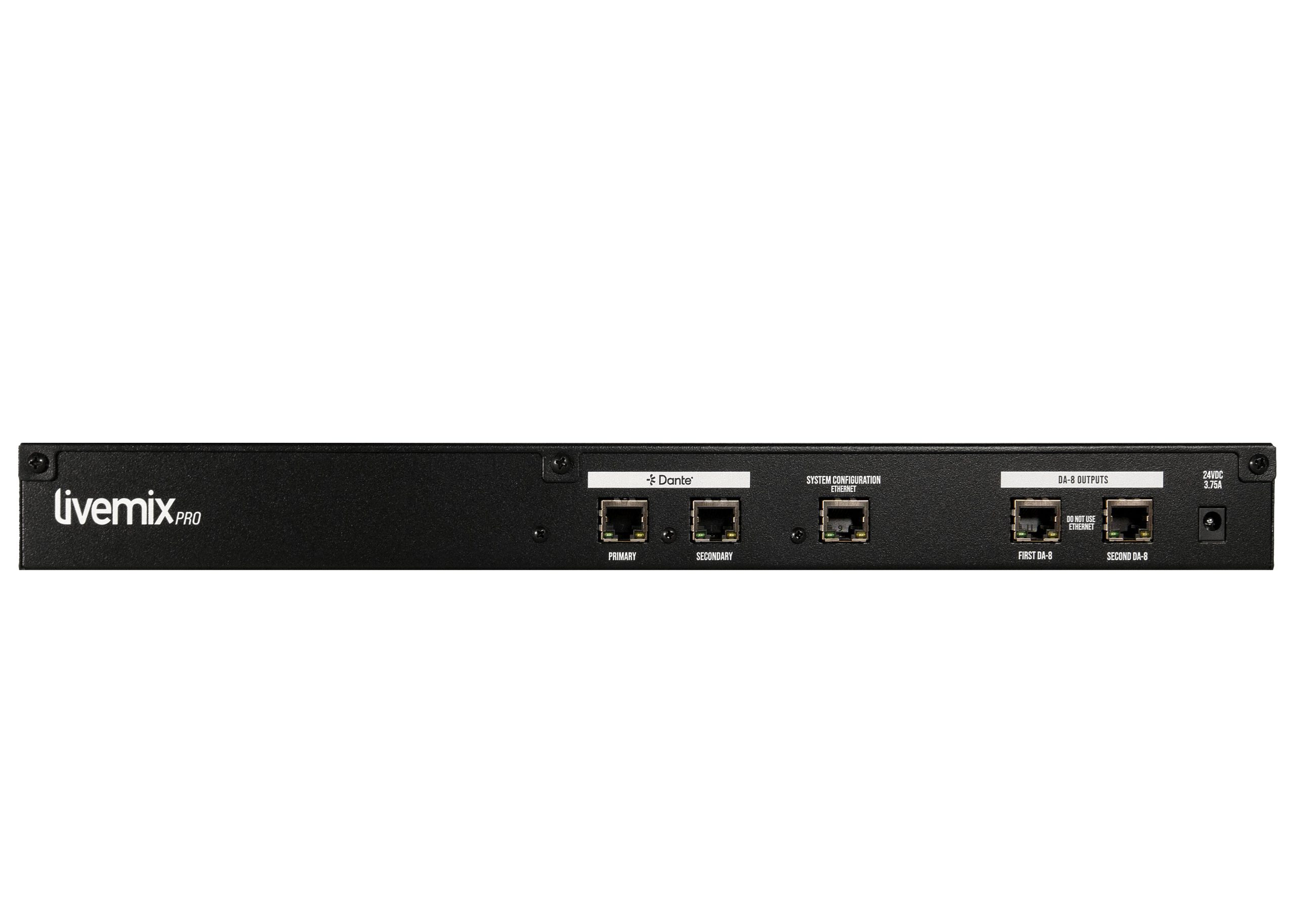

The Dante network ready Livemix Pro-16 is the mix and power distribution center of the Livemix Pro system. Each front panel Ethercon compatible port carries two separate mixes to connected personal mixers.
- Font panel connectors accept both Ethercon or standard CAT-5e/CAT-6 network cables
- Provides power to connected personal mixers
- Built-In primary and secondary Dante ports
- Front panel indication
- USB port for system firmware updates
- Connects to up to 2 DA-8 (optional) analog output units.

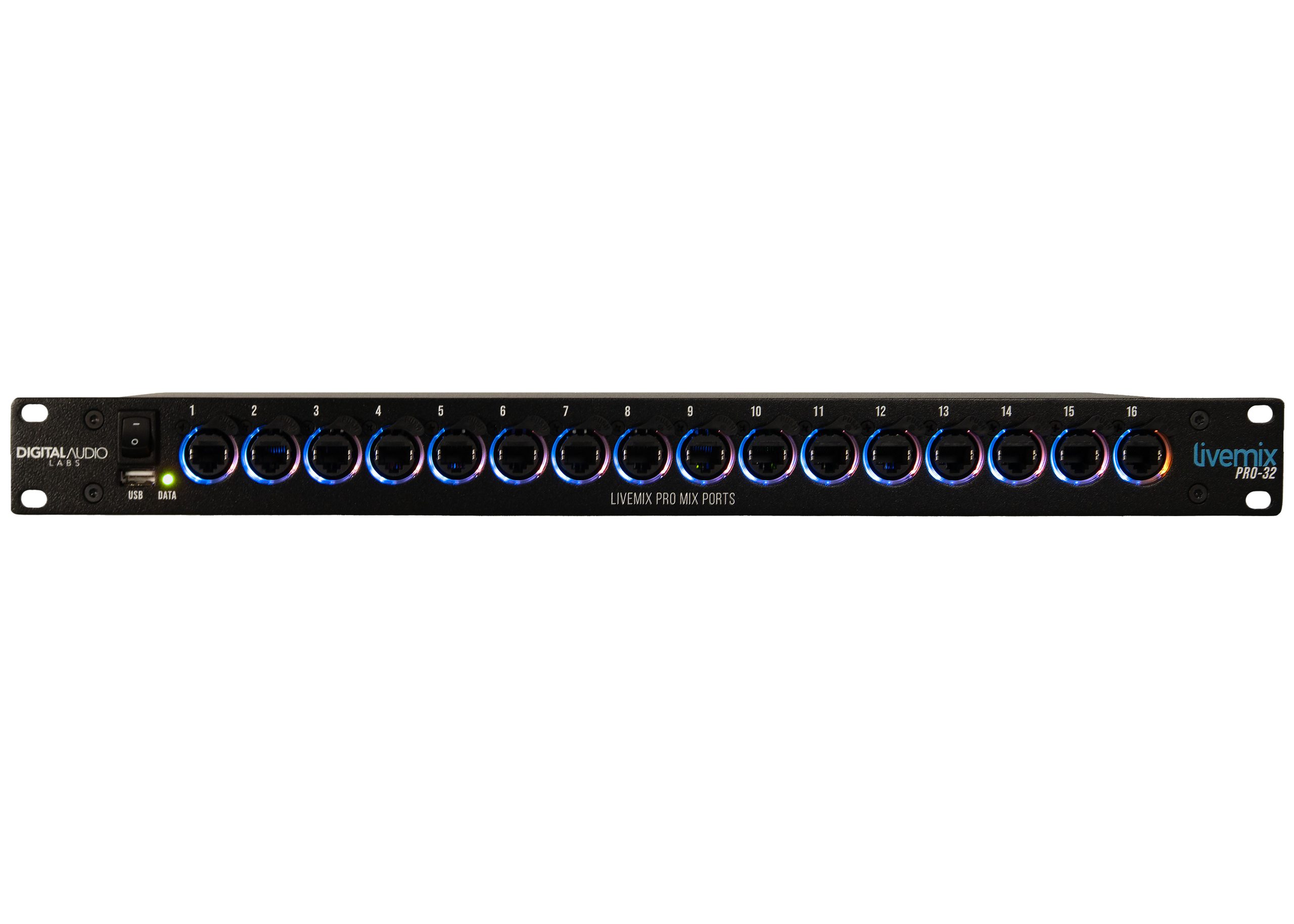

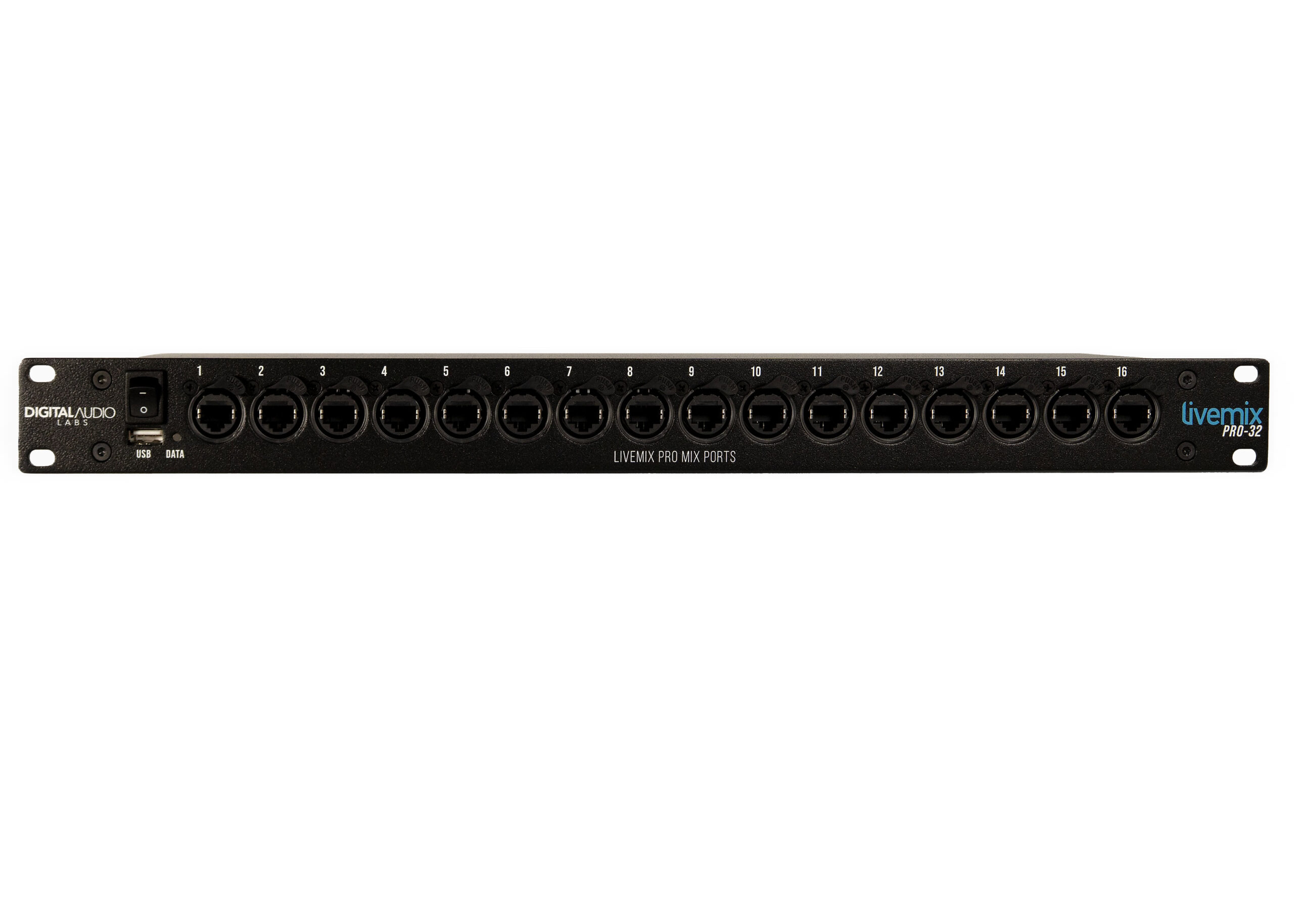

32 PERSONAL MIX DISTRUBUTOR
$4299.99 MSRP
Need more than 16 mixes? The Dante network ready Livemix Pro-32 is the mix and power distribution center of the Livemix Pro system. Each front panel Ethercon compatible port carries two separate mixes to up to 32 connected personal mixers.
- Font panel connectors accept both Ethercon or standard CAT-5e/CAT-6 network cables
- Provides power to connected personal mixers
- Built-In primary and secondary Dante ports
- Front panel indication
- USB port for system firmware updates
- Connects to up to 2 DA-8 (optional) analog output units.

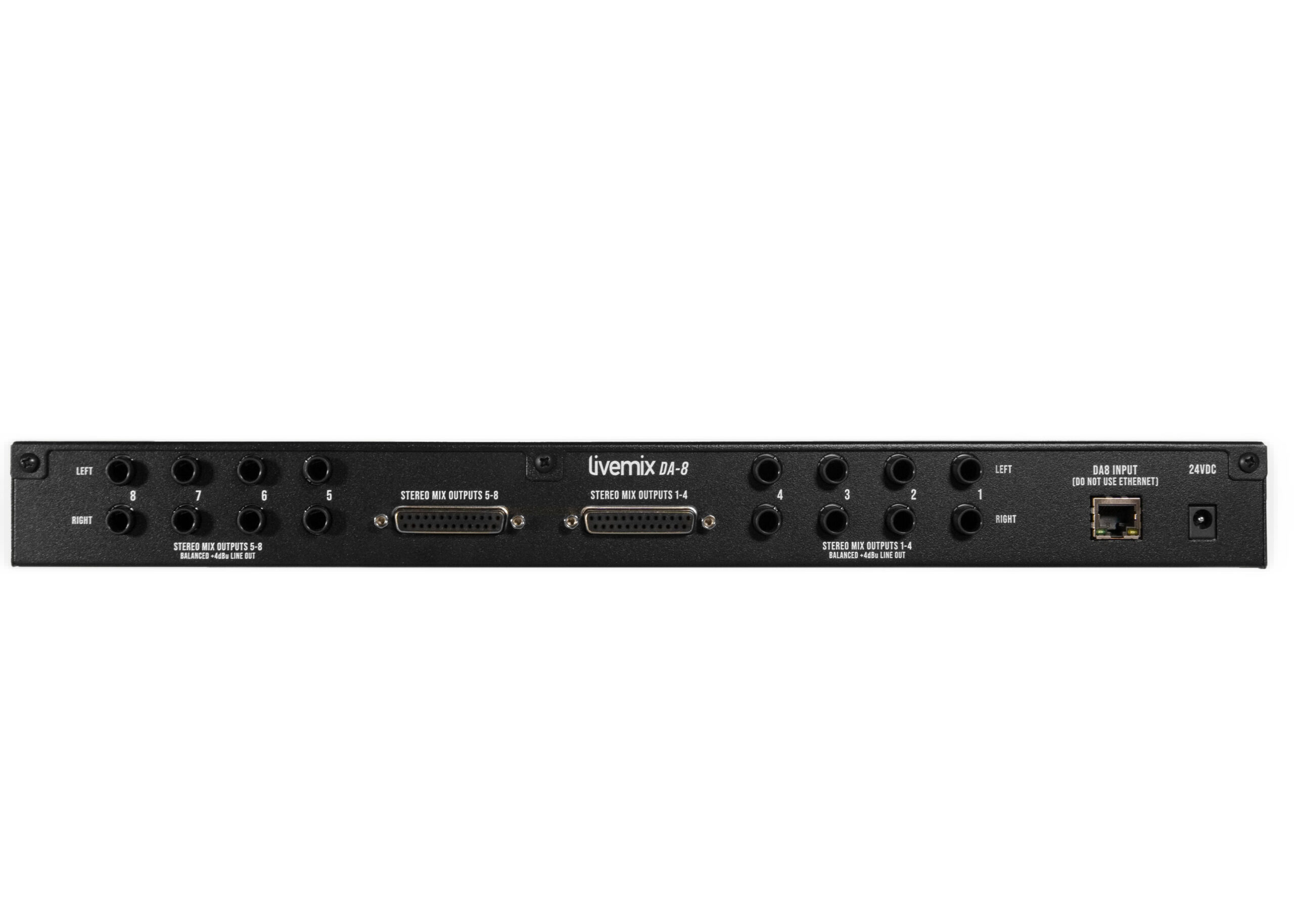

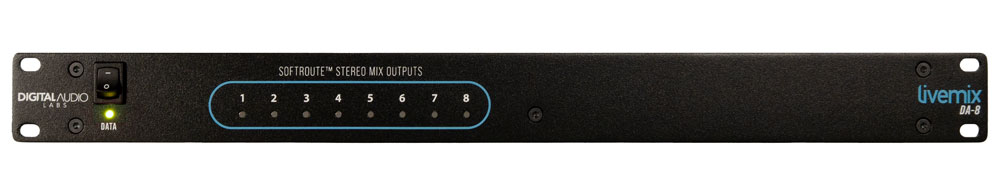

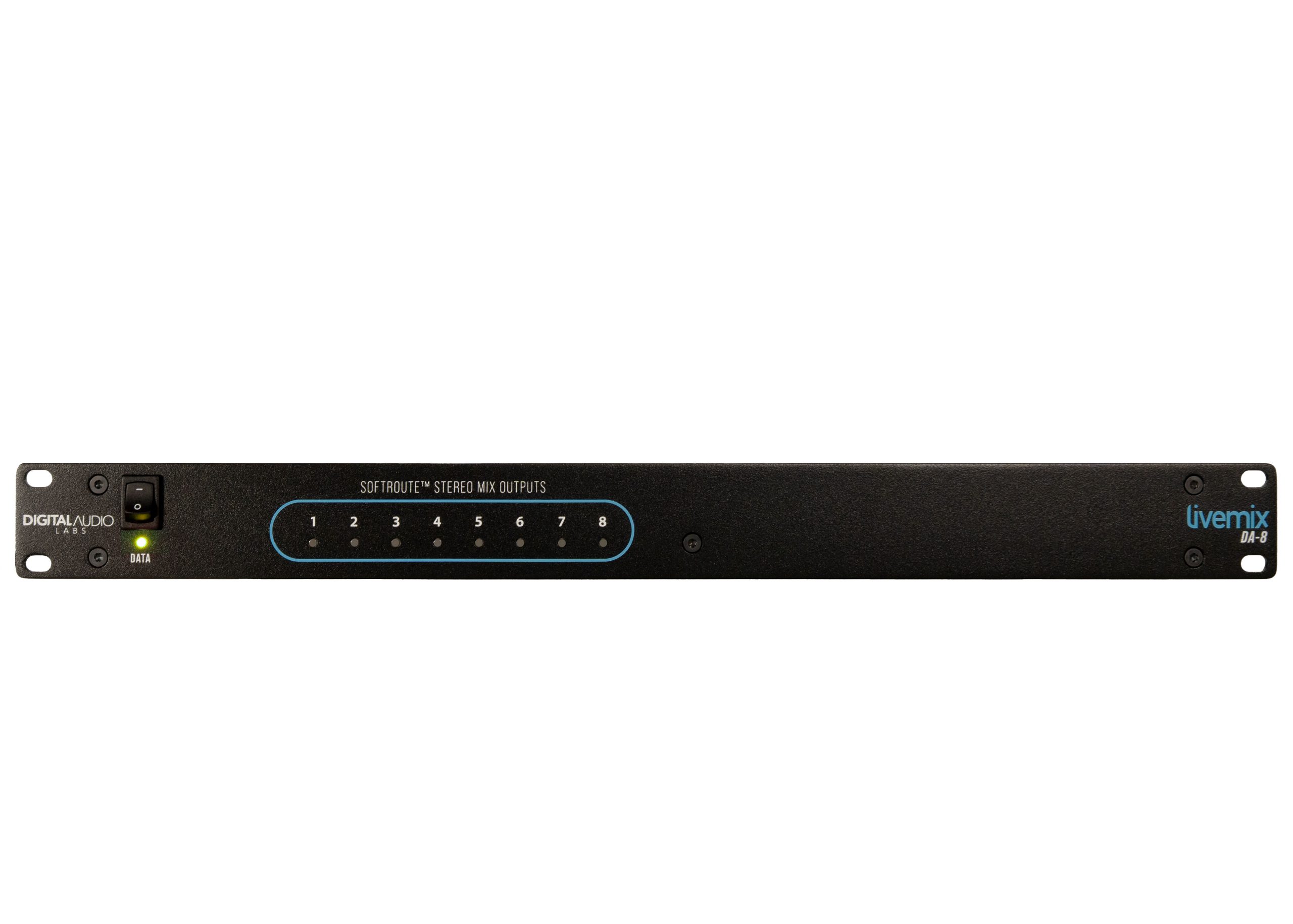

8 STEREO ANALOG OUTPUT WITH SOFTROUTE™
$1249.99 MSRP
Connect your wireless in-ear monitor transmitters or other analog outputs to the Livemix Pro system. Dynamically route personal mixes to outputs from Livemix Pro personal mixers. Output ID with test tone eliminates the need to dig in the back of a rack to trace what output goes where!
- 8 analog stereo outputs
- TRS and DB-25 connectors
- Front panel indicators
- Output ID indication with test tone
- Easy setup with SoftRoute™ on PRO DUO/SOLO/SOLO MD
NEED LIVEMIX PRO SUPPORT?
Check out our support page and video links on this page for more information. Hit the button below to jump to Support and our Channel Import CSV FIle (Livemix Pro only).
