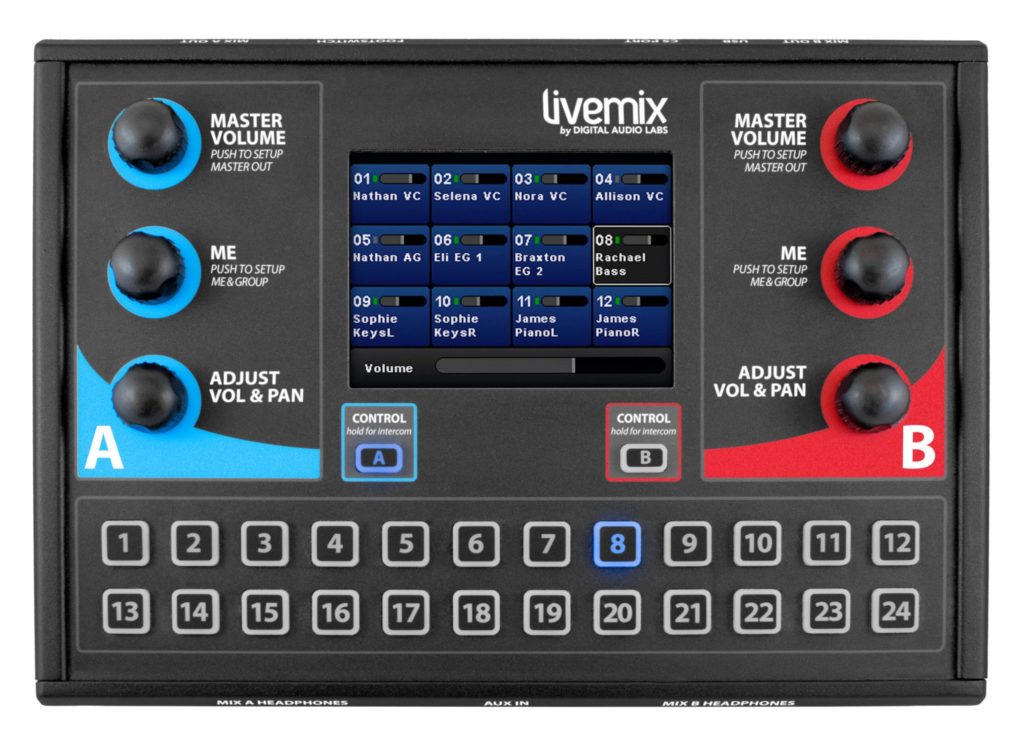

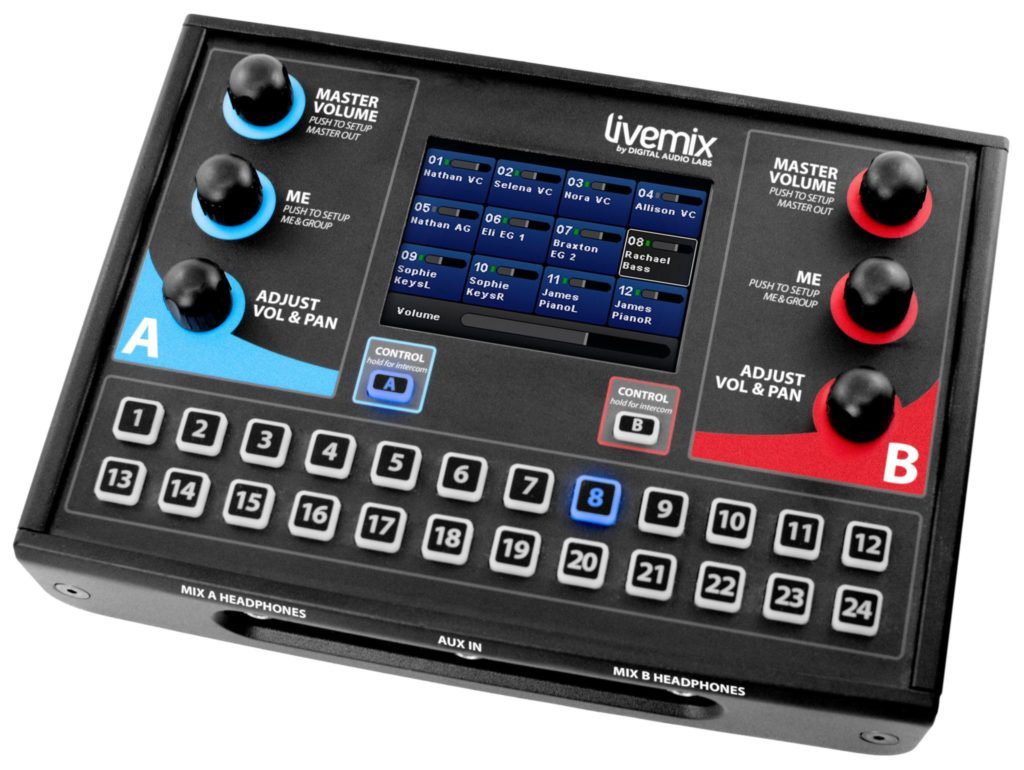

The Livemix CS-DUO is the most feature rich personal mixer on the market. The LCD touchscreen with custom naming makes creating a mix easy. Dedicated knobs provide quick access to essential features.
The Livemix CS-DUO is two personal mixers in one. With two mixes per unit, you can reduce your overall per node cost without sacrificing quality or functionality.
The CS-DUO provides 24 channels plus accessory channels, each with EQ and compression. The master output features EQ, compression and reverb. MirrorMix® remote setup and mixing, mute and solo options, channel grouping and LCD dimming make the Livemix system deep enough for professionals, but simple enough for volunteers.
|Output Power & THD+N||@22Ω||200mW @ 1% THD+N|
|100mW @ .03% THD +N|
|@32Ω||250mW @ 1% THD+N|
|100mW @ .014% THD +N|
|@64Ω||250mW @ 1% THD+N|
|100mW @ .005% THD +N|
|@300Ω||130mW @ 1% THD+N|
|100mW @ .003% THD +N|
|Frequency Response||20 Hz – 22 kHz ± 3 dB|
|S/N Ratio||103 dB|
|Input Impedance (Aux In)||7.5 kΩ|
|Crosstalk (Left to Right)||-103 dB|
|Max Cable length from MIX-16||100m CAT5e cable
|Filter Q||High Pass & Low Pass||.707|
|Filter Cut/Boot Amount||± 6 dB|
|Ambient Mic Gain||25 dB|
Shielded cable is required for connecting both the AD-24 and the DA-816 to the MIX-16 or MIX-32. Shielded cable is not required for connecting a CS-SOLO or CS-DUO to the MIX-16/32 or connecting the LM-DANTE card to the Dante network. However, shielded is recommended.
Livemix works with either analog or digital (Dante) input. With the AD-24 analog input unit you can connect TRS or DB25 connectors from your console or recording interface. For a Digital connection with Dante, plug directly into a switch. For other digital formats (MADI), you may need a format converter.
We recommend to make the Master clock the console or Dante card in the console. NOTE: There are two ways this can be done. 1) Set the console’s internal clock as Master, then using Dante Controller, set the console’s Dante card as Master clock (for the Dante Network) and also check box “Sync to External”. This will allow the card to stay synched to the console’s master clock. 2) Set the console’s internal clock to be slave of the console’s Dante card. Using Dante controller, set the console’s Dante card as Master clock.
