LIVEMIX MIX-16
LIVEMIX MIX-16
16 personal monitor mix distributor
MSRP: $1919.00

The MIX-16 is the central mixer for the Livemix personal monitor system. The MIX-16 supplies mix streams as well as power to each of the connected personal mixers.

The MIX-16 will generally be placed near the personal mixers, likely in a rack near the stage. The MIX-16 receives input data over a network cable, either from the AD-24 (shielded) or a Dante network via the LM-DANTE-EXP Dante card.

Each port on the MIX-16 supports two discrete personal monitor mixes. Connect a single CS-DUO or up to two CS-SOLOs to each port with standard network cable. Maximum combined CAT5e cable (shielded or unshielded) distance is 100 meters.

Livemix MIX-16 central mixer distributor for Livemix in-ear monitoring system front image
Livemix MIX-16 central mixer distributor for Livemix in-ear monitoring system front image

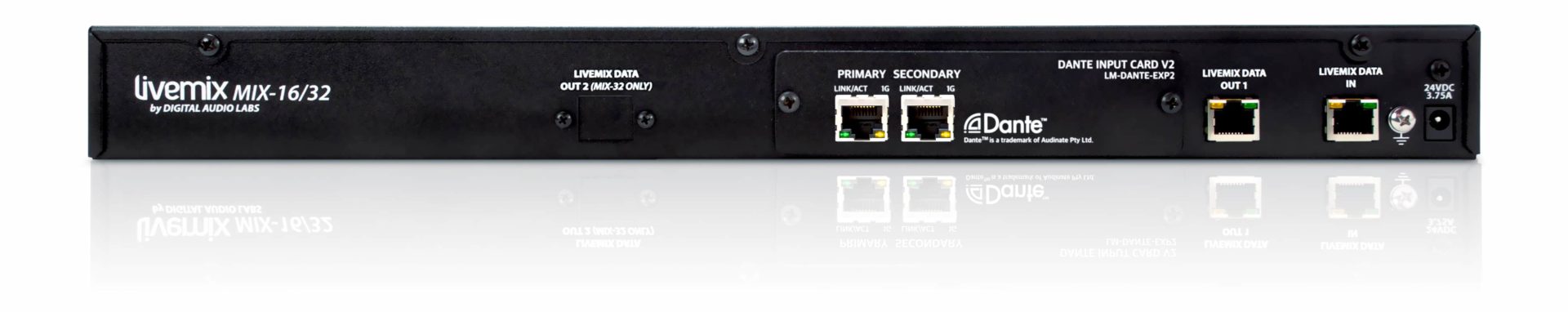

Livemix MIX-16 central mixer distributor for Livemix in-ear monitoring system back image
Livemix MIX-16 central mixer distributor for Livemix in-ear monitoring system Audinate Dante option card image
Livemix MIX-16 central mixer distributor for Livemix in-ear monitoring system
Livemix MIX-16 central mixer distributor for Livemix in-ear monitoring system front imageLivemix MIX-16 central mixer distributor for Livemix in-ear monitoring system back imageLivemix MIX-16 central mixer distributor for Livemix in-ear monitoring system Audinate Dante option card imageLivemix MIX-16 central mixer distributor for Livemix in-ear monitoring system

FEATURES

  • Livemix personal monitor system with 24 channels of audio

    24 Channel + 4 Accessory Channels

    The MIX-16 receives 24 channels of audio from the AD-24 (for analog sources) or the LM-DANTE-EXP option card (for digital sources from a Dante™ Network). This is more than enough to handle the needs of church, studio, and live event stages while still being simple to use with the intuitive mix interface.

  • Livemix personal monitor system with 24 channels of audio

    24-bit Mixing

    High quality audio processing means mixes come together quicker and easier. Clear separation of instruments with no smearing and accurate sound reproduction make Livemix the best sounding personal monitor mixer on the market. Digital Audio Labs’s decades of experience in digital audio give you the very best sounding mixes possible.

  • Livemix with expansion port icon

    Expansion Port (Option Card)

    With the built-in expansion port, you never have to worry about future compatibility. The audio world is always changing and Livemix will support those changes so you can be assured that your personal monitor system will provide many years of best-in-class functionality.

  • Livemix personal monitor system - In-ear monitor - wireless

    Output to Analog for Transmitters

    Each MIX-16 has an output port for connection to the optional Livemix DA-816 analog output unit. This lets you assign personal monitor mixes to one of 8 stereo outputs for easy wireless in-ear monitor integration.

  • Livemix personal monitor

    Supports Up to 16 Personal Mixers

    8 front panel ethernet ports provide power and mix capabilities to up to 16 personal monitor mixes. This can be through 8 dual mix CS-DUO units, 16 single mix CS-SOLOs or a combination.

DOWNLOADS

Please visit the Support page for the latest firmware downloads.

The Livemix MIX-16 uses open source code. The FreeRTOS source code is available for download here.

LIVEMIX MIX-16
Max Cable Length
to CS-SOLO/CS-DUO
100m CAT5e cable (shielded recommended)
Max Cable Length
to AD-24/DA-816
100m CAT5e cable (shielded required)
Bit Rate 24-bit Digital Mixing and Processing
Sample Rate 48 kHz internal system rate
Up to 96kHz sample rate input accepted from Dante network
Digital Format Proprietary in system
Expansion Option Card Slot

Shielded cable is required for connecting both the AD-24 and the DA-816 to the MIX-16 or MIX-32. Shielded cable is not required for connecting a CS-SOLO or CS-DUO to the MIX-16/32 or connecting the LM-DANTE card to the Dante network. However, shielded is recommended.

Categories: AD24, Cables, Livemix, MIX16, MIX32

The maximum supported CAT5e (shielded required) cable distance of 100 meters.

Categories: Cables, CSDUO, CSSOLO, Livemix, MIX16, MIX32

Each MIX-16/MIX-32 Control Surface port supports a maximum combined CAT5e (shielded recommended) cable distance of 100 meters.

Categories: Cables, DA816, Livemix, MIX16, MIX32

The maximum supported CAT5e (shielded required) cable distance of 100 meters.
